ANO 9712-3005

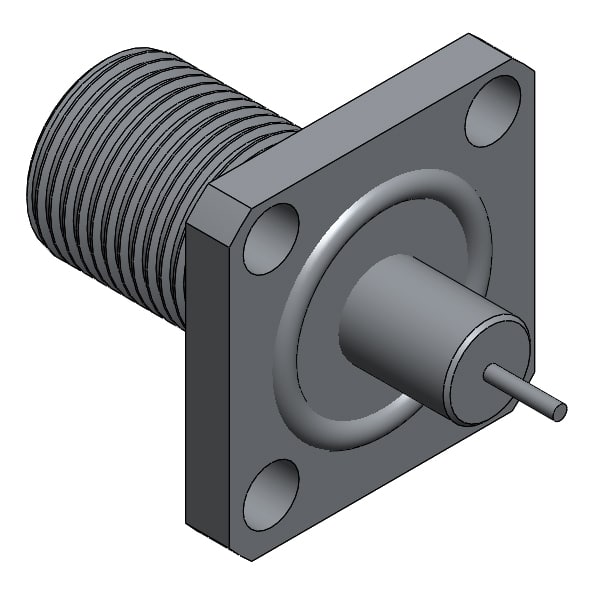

75 Ohm F Female Connector Solder Attachment 4 Hole Pin Terminal .500 Inch Hole Spacing
Product Type:Connectors
Series:F
Series:F
Price:
Product Specifications
| Connector Series | F |
|---|---|
| Termination Type | Terminal |
| Gender | Female |
| Body Style | Straight |
| Attachment Method | Solder |
| Max. Frequency | 950MHz-2050MHz |
| Mounting Feature | 4 Hole Flange |
| Connection Method | Screw-on |
| Terminal Contact Type | Pin |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 75 Ohm |
| Contact Material | Phosphor Bronze |
| Contact Finish | Silver |
| Body Material | Brass |
| Body Finish | Nickel |
| Dielectric Type | PTFE |
| Temperature | -40°C to +60°C |
| VSWR | 1.25 MAX. |
