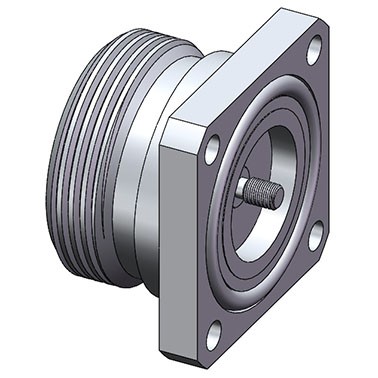

ANO 5612-3014
7/16 Straight Female, Fixed Socket 4 Hole 1.26'' SQ. Flange Mount, Field Replaceable
Product Type:Connectors
Series:7/16
Series:7/16
Price:
Product Specifications
| Connector Series | 7/16 |
|---|---|
| Termination Type | Field Replaceable Contact |
| Gender | Female |
| Body Style | Straight |
| Attachment Method | Threaded |
| Max. Frequency | 6 GHz |
| Mounting Feature | 4 Hole Flange |
| Connection Method | Screw-on |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Phosphor Bronze |
| Contact Finish | Silver |
| Body Material | Brass |
| Body Finish | Albaloy |
| Dielectric Type | PTFE |
| Temperature | -55°C to +125°C |
| Low PIM | Yes |
| VSWR | 1.15 MAX. AT DC-4 GHz |
