ANO 5112-2223

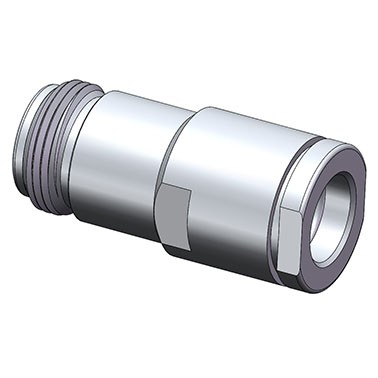

N Straight Female Clamp For LMR400 Cable Captivated Contact
Product Type:Connectors
Series:N-Type
Series:N-Type
Price:
Product Specifications
| Connector Series | N-Type |
|---|---|
| Cable Type | LL400 |
| Termination Type | Coaxial |
| Gender | Female |
| Body Style | Straight |
| Attachment Method | Clamp |
| Max. Frequency | 6 GHz |
| Connection Method | Screw-on |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Phosphor Bronze |
| Contact Finish | Silver |
| Body Material | Brass |
| Body Finish | Albaloy |
| Dielectric Type | PTFE |
| Temperature | -55°C to +125°C |
| VSWR | 1.05 MAX. AT DC-3 GHz, 1.17 MAX. AT 3-6 GHz |
