ANO 4712-1023

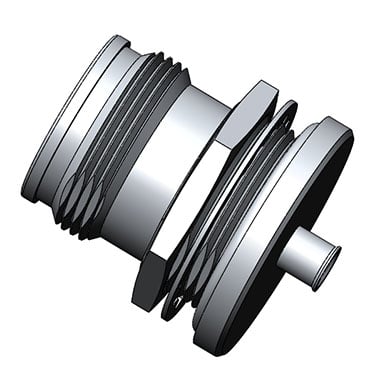

4.3-10 Straight Waterproof Bulkhead Female Solder for .141 Cable
Product Type:Connectors
Series:4.3-10
Series:4.3-10
Price:
Product Specifications
| Connector Series | 4.3-10 |
|---|---|
| Cable Type | HF141FEP, HF141FEP(W), RG402, SR141 AL/TP, SR141TP-LL, AFLEX-141, AFLEX-141AF, HF141, SR141 |
| Termination Type | Coaxial |
| Gender | Female |
| Body Style | Straight |
| Attachment Method | Solder |
| Max. Frequency | 6 GHz |
| Mounting Feature | Bulkhead – Rear Mount |
| Connection Method | Screw-on |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Beryllium Copper Alloy |
| Contact Finish | Silver |
| Body Material | Brass |
| Body Finish | Albaloy |
| Dielectric Type | PTFE |
| Temperature | -40°C to +125°C |
| Low PIM | Yes |
| VSWR | 1.30 MAX. |
