ANO 3312-2109

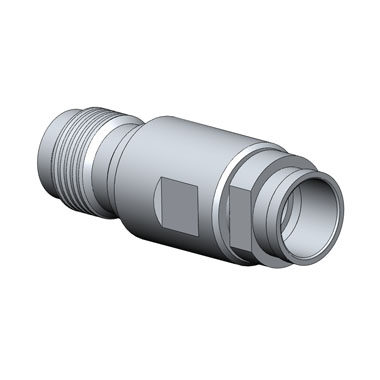

TNC Straight Female Solder for IW 2801/ GORE 3450/PLEX-310 Cable
Product Type:Connectors
Series:TNC
Series:TNC
Price:
Product Specifications
| Connector Series | TNC |
|---|---|
| Cable Type | PLEX310 |
| Termination Type | Coaxial |
| Gender | Female |
| Body Style | Straight |
| Attachment Method | Solder |
| Max. Frequency | 11 GHz |
| Connection Method | Screw-on |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Beryllium Copper Alloy |
| Contact Finish | Gold |
| Body Material | Stainless Steel |
| Body Finish | Passivated |
| Dielectric Type | PTFE |
| Temperature | −55℃ to +165℃ |
| VSWR | 1.35 MAX. |
