ANO 2611-2038

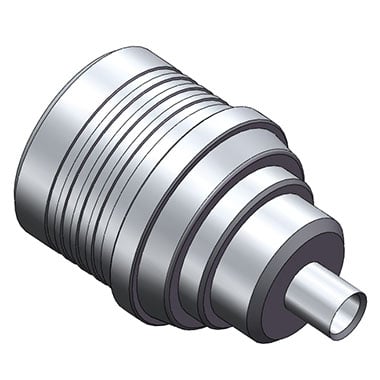

QMA Straight Male Solder For .047 Cable
Product Type:Connectors
Series:QMA
Series:QMA
Price:
Product Specifications
| Connector Series | QMA |
|---|---|
| Cable Type | AFLEX-047, HF047, HF047FEP, SR047, SR047TP |
| Termination Type | Coaxial |
| Gender | Male |
| Body Style | Straight |
| Attachment Method | Solder |
| Max. Frequency | 18 GHz |
| Connection Method | Quick Lock |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Brass |
| Contact Finish | Silver |
| Body Material | Brass |
| Body Finish | Albaloy |
| Dielectric Type | PTFE |
| Temperature | -55°C to +125°C |
