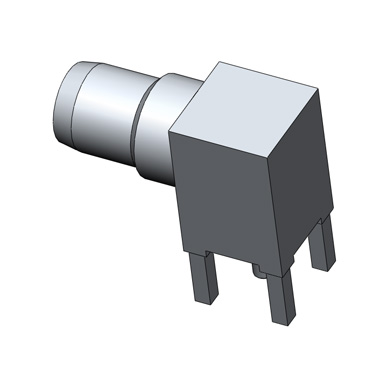

ANO 1421-4016
BMA Right Angle Plug PCB Receptacle
Product Type:Connectors
Series:BMA
Series:BMA
Price:
Product Specifications
| Connector Series | BMA |
|---|---|
| Termination Type | PCB |
| Gender | Plug |
| Body Style | Right Angle |
| Attachment Method | Solder |
| Max. Frequency | 22 GHz |
| Connection Method | Slide-on |
| PCB Type | Through Hole |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Brass |
| Contact Finish | Gold |
| Body Material | Brass |
| Body Finish | Gold |
| Dielectric Type | PTFE |
| Temperature | −55℃ to +165℃ |
| VSWR | 1.50 MAX. |
