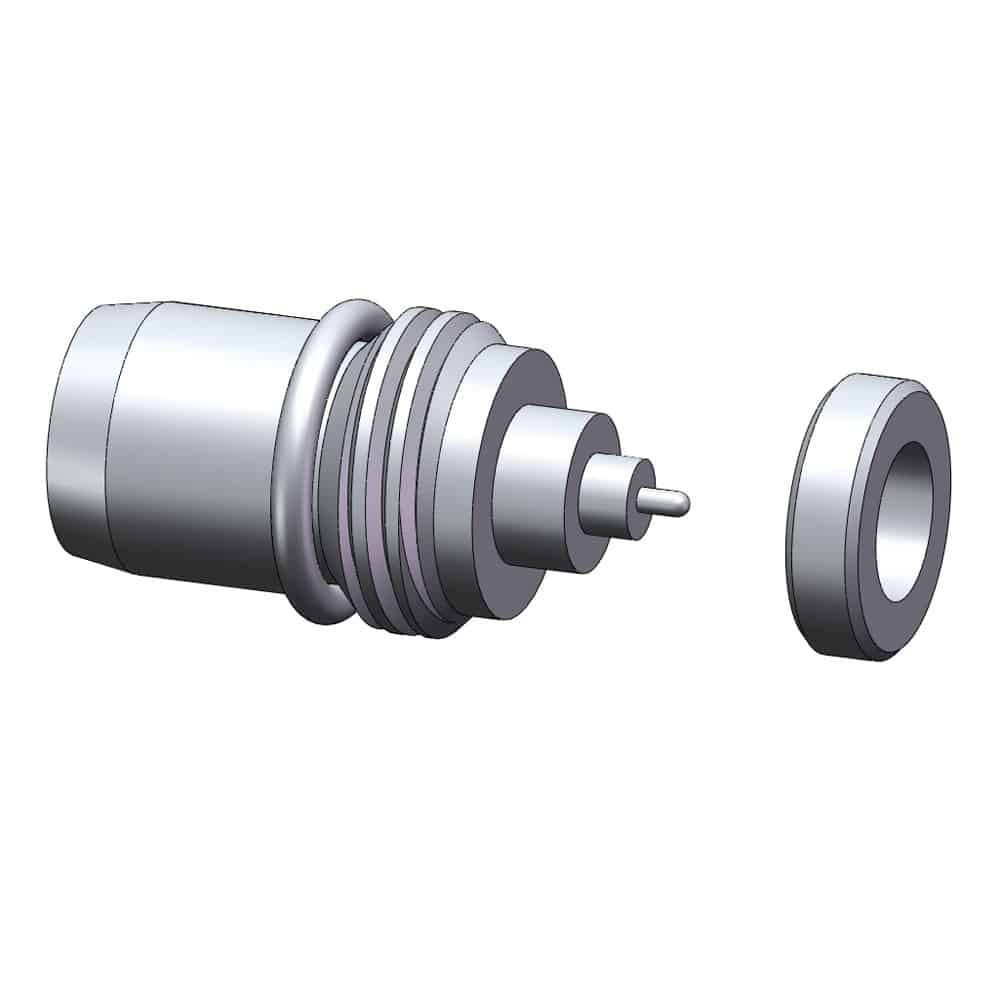

ANO 1411-5010
BMA Straight Jack Thread-in Hermetic
Product Type:Connectors
Series:BMA
Series:BMA
Price:
Product Specifications
| Connector Series | BMA |
|---|---|
| Termination Type | Terminal |
| Gender | Jack |
| Body Style | Straight |
| Attachment Method | Solder |
| Max. Frequency | 22 GHz |
| Mounting Feature | Thread-in |
| Connection Method | Slide-on |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Beryllium Copper Alloy |
| Contact Finish | Gold |
| Body Material | Stainless Steel |
| Body Finish | Gold |
| Dielectric Type | PTFE |
| Temperature | -40°C to +85°C |
| VSWR | 1.30 MAX. |
