ANO 6212-3036-2

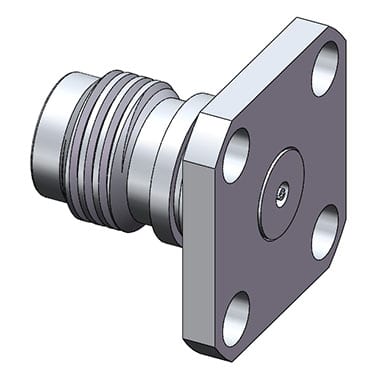

1.85mm Straight Female, 4 Hole .374'' SQ. Flange, Field Replaceable, Accept .012'' Pin Dia, PTFE Back Filled, 27GHz
Product Type:コネクタ
Series:1.85mm
Series:1.85mm
Price:
製品仕様
| Connector Series | 1.85mm |
|---|---|
| Termination Type | Field Replaceable Contact |
| Gender | Female |
| Body Style | Straight |
| Attachment Method | Field Replaceable |
| Max. Frequency | 27 GHz |
| Mounting Feature | 4 Hole Flange |
| Connection Method | Screw-on |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Beryllium Copper Alloy |
| Contact Finish | Gold |
| Body Material | Stainless Steel |
| Body Finish | Passivated |
| Dielectric Type | PTFE, PEI |
| Temperature | -55℃ to +165℃ |
| Accept Pin For Socket | 0.012 inch |
| VSWR | 1.20 MAX. |
