ANO 2111-2381

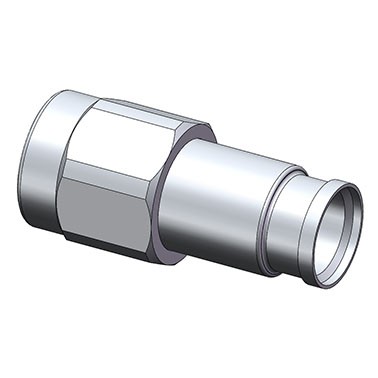

SMA Straight Male Solder For PLEX-210 Cable
Product Type:コネクタ
Series:SMA
Series:SMA
Price:
製品仕様
| Connector Series | SMA |
|---|---|
| Cable Type | PLEX210 |
| Termination Type | Coaxial |
| Gender | Male |
| Body Style | Straight |
| Attachment Method | Solder |
| Max. Frequency | 18 GHz |
| Connection Method | Screw-on |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Brass |
| Contact Finish | Gold |
| Body Material | Brass |
| Body Finish | Gold |
| Dielectric Type | PTFE |
| Coupling Nut Material | Stainless Steel |
| Coupling Nut Finish | Passivated |
| Temperature | -65℃ to +165 |
| VSWR | 1.30 MAX. |
