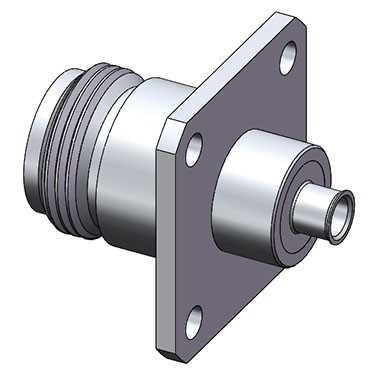

ANO 5112-3190
N Straight Female, 4 Hole 1 inch SQ. Flange Mount Solder For .141 Cable
Product Type:Connectors
Series:N-Type
Series:N-Type
Price:
Product Specifications
| Connector Series | N-Type |
|---|---|
| Cable Type | HF141FEP, HF141FEP(W), RG402, SR141 AL/TP, SR141TP-LL, AFLEX-141, AFLEX-141AF, HF141, SR141 |
| Termination Type | Coaxial |
| Gender | Female |
| Body Style | Straight |
| Attachment Method | Solder |
| Max. Frequency | 11 GHz |
| Mounting Feature | 4 Hole Flange |
| Connection Method | Screw-on |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Phosphor Bronze |
| Contact Finish | Silver |
| Body Material | Brass |
| Body Finish | Albaloy |
| Dielectric Type | PTFE |
| Temperature | −55℃ to +165℃ |
