ANO 3311-2102

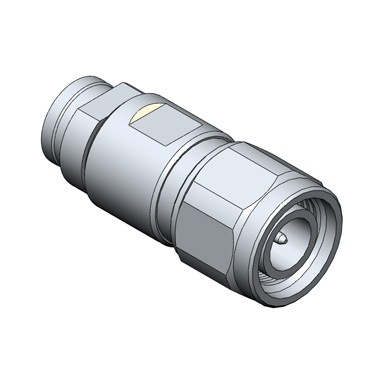

TNC Straight Male Solder For PLEX-310, CXN3450, IW2801 Cable, Captivated Contact
Product Type:Connectors
Series:TNC
Series:TNC
Price:
Product Specifications
| Connector Series | TNC |
|---|---|
| Cable Type | PLEX310 |
| Termination Type | Coaxial |
| Gender | Male |
| Body Style | Straight |
| Attachment Method | Solder |
| Max. Frequency | 18 GHz |
| Connection Method | Screw-on |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Brass |
| Contact Finish | Gold |
| Body Material | Stainless Steel |
| Body Finish | Passivated |
| Dielectric Type | PTFE |
| Coupling Nut Material | Stainless Steel |
| Coupling Nut Finish | Passivated |
| Temperature | −55℃ to +165℃ |
| VSWR | 1.35 MAX. |
