ANO 2121-2002

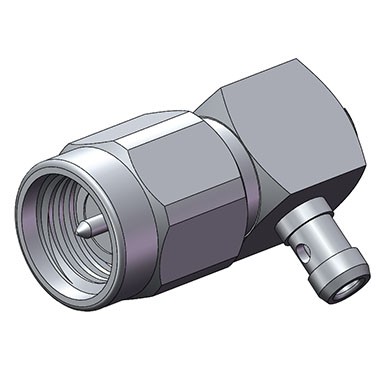

SMA Right Angle Male Solder For RG178/RG196
Product Type:Connectors
Series:SMA
Series:SMA
Price:
Product Specifications
| Connector Series | SMA |
|---|---|
| Cable Type | RG196, RG178 |
| Termination Type | Coaxial |
| Gender | Male |
| Body Style | Right Angle |
| Attachment Method | Solder |
| Max. Frequency | 6 GHz |
| Connection Method | Screw-on |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Brass |
| Contact Finish | Gold |
| Body Material | Brass |
| Body Finish | Gold |
| Dielectric Type | PTFE |
| Coupling Nut Material | Brass |
| Coupling Nut Finish | Gold |
| Temperature | -40°C to +125°C |
| VSWR | 1.35 MAX. |
