ANO 4712-2009

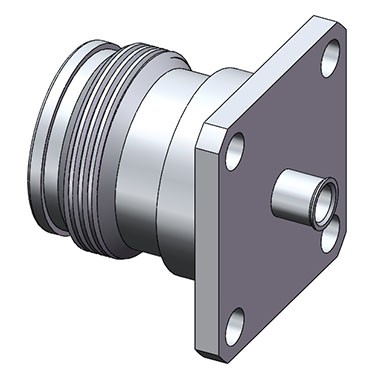

4.3-10 Straight Female, 4 Hole 1 inch SQ. Flange Solder For .141 Cable, Captivated Contact
Product Type:コネクタ
Series:4.3-10
Series:4.3-10
Price:
製品仕様
| Connector Series | 4.3-10 |
|---|---|
| Cable Type | HF141FEP, HF141FEP(W), RG402, SR141 AL/TP, SR141TP-LL, AFLEX-141, AFLEX-141AF, HF141, SR141 |
| Termination Type | Coaxial |
| Gender | Female |
| Body Style | Straight |
| Attachment Method | Solder |
| Max. Frequency | 6 GHz |
| Mounting Feature | 4 Hole Flange |
| Connection Method | Screw-on |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Phosphor Bronze |
| Contact Finish | Silver |
| Body Material | Brass |
| Body Finish | Albaloy |
| Dielectric Type | PTFE |
| Temperature | -40°C to +85°C |
| Low PIM | Yes |
| VSWR | 1.30 MAX. |
