ANO 2112-6490

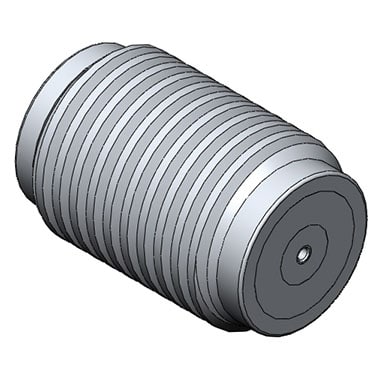

SMA Straight Female, Screw-In
Product Type:コネクタ
Series:SMA
Series:SMA
Price:
製品仕様
| Connector Series | SMA |
|---|---|
| Termination Type | Terminal |
| Gender | Female |
| Body Style | Straight |
| Attachment Method | Solder |
| Max. Frequency | 26.5 GHz |
| Connection Method | Screw-on |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Beryllium Copper Alloy |
| Contact Finish | Gold |
| Body Material | Stainless Steel |
| Body Finish | Passivated |
| Dielectric Type | PTFE, PEI |
| Temperature | -55°C to +125°C |
| VSWR | 1.16 Max. at DC-18 GHz 1.21 Max. at 18-26.5 GHz |
