ANO 2112-3414

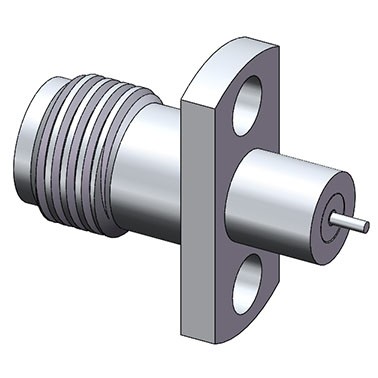

SMA Straight Female 2 Hole Flange .500'' Long, Accept .020'' Pin Dia, Field Replaceable
Product Type:コネクタ
Series:SMA
Series:SMA
Price:
製品仕様
| Connector Series | SMA |
|---|---|
| Termination Type | Field Replaceable Contact |
| Gender | Female |
| Body Style | Straight |
| Attachment Method | Field Replaceable |
| Max. Frequency | 18 GHz |
| Mounting Feature | 2 Hole Flange |
| Connection Method | Screw-on |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Beryllium Copper Alloy |
| Contact Finish | Gold |
| Body Material | Brass |
| Body Finish | Gold |
| Dielectric Type | PTFE |
| Temperature | -65℃ to +165 |
| Accept Pin For Socket | 0.020 inch |
| VSWR | 1.25 MAX. |
