ANO 2111-2461

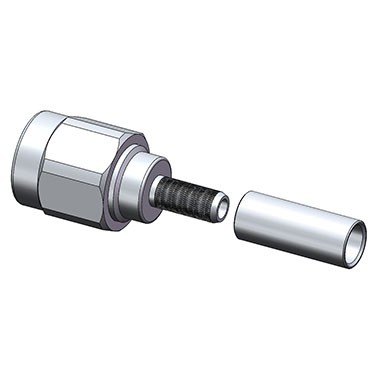

SMA Straight Male Crimp for LMR100/ RG316/ RG174/ RG188 Cable
Product Type:コネクタ
Series:SMA
Series:SMA
Price:
製品仕様
| Connector Series | SMA |
|---|---|
| Cable Type | LL-100, RG174, RG188, RG316 |
| Termination Type | Coaxial |
| Gender | Male |
| Body Style | Straight |
| Attachment Method | Crimp |
| Max. Frequency | 12.4 GHz |
| Connection Method | Screw-on |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Beryllium Copper Alloy |
| Contact Finish | Gold |
| Body Material | Stainless Steel |
| Body Finish | Gold |
| Dielectric Type | PTFE |
| Coupling Nut Material | Stainless Steel |
| Coupling Nut Finish | Passivated |
| Temperature | -65°C to +125°C |
| VSWR | 1.15+0.015 X F(GHz) |
